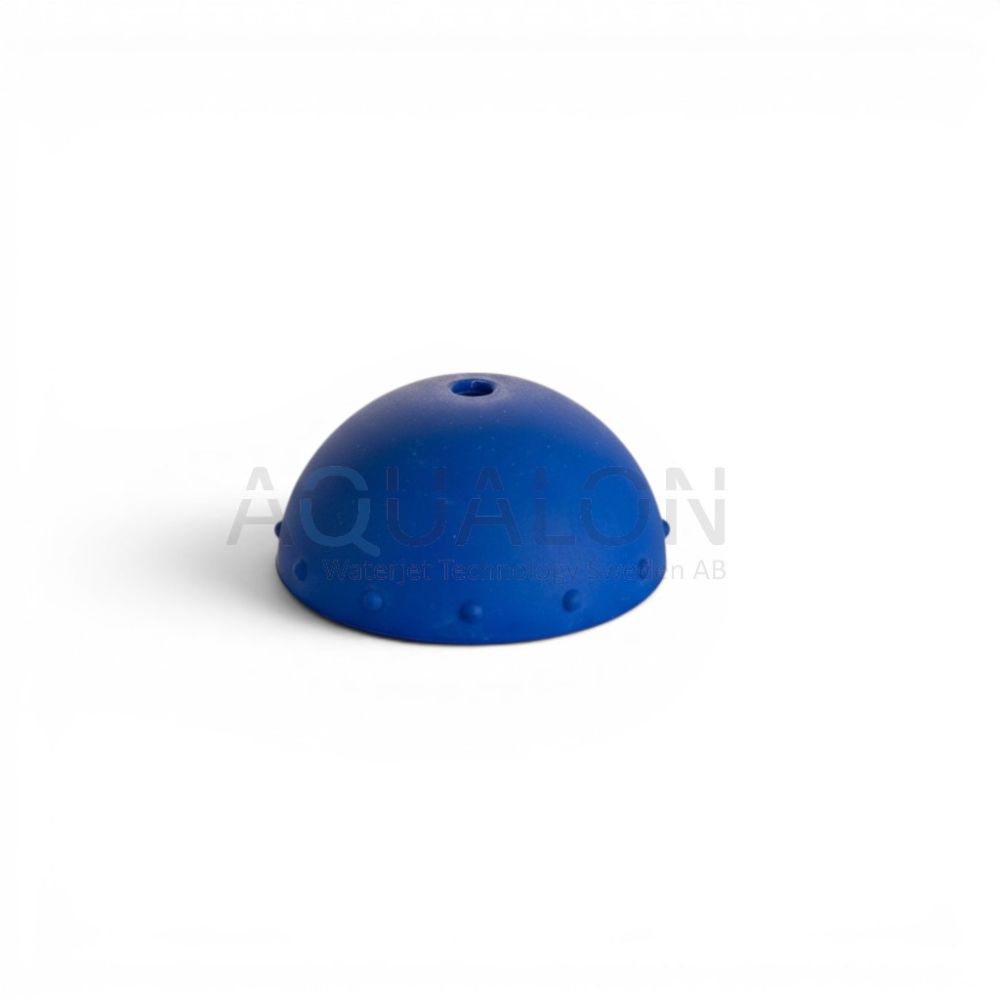

Nozzle Splash Guard, 400222-1

H20 part number: 400222-1

Other references: FW400222-1, 107872, WEIDEPSGF, 300-H0078-0000, 058660-1, 107872, 048149-1

Nozzle guard for IDE III (7.14 focusing tubes) but will fit all sizes

Article number: 13485

The Nozzle Splash Guard 400222-1 is a protective deflector component designed for use in abrasive waterjet cutting heads. Its primary function is to shield the cutting head assembly from splashback generated during piercing and cutting operations.

By deflecting water, abrasive particles, and debris away from critical components, the splash guard helps reduce wear, prevent contamination, and extend the lifespan of the cutting head. It is a simple yet highly effective protective accessory commonly used in high-pressure waterjet systems.

Key features

  • Part number: 400222-1
  • Function: Protects cutting head from splashback during piercing
  • Type: Splash guard / spray shield / deflector
  • Benefit: Reduces wear and maintenance needs
  • Compatibility: Suitable for various waterjet systems (e.g. FLOW, H2O Jet equivalents)
  • Replacement for: 058660-1, 048149-1

Applications

  • Abrasive waterjet cutting systems
  • Piercing operations where splashback is highest
  • Protection of nozzle and cutting head components

Summary

This is a low-cost but essential protective part that helps maintain stable operation and longer service life of your waterjet cutting head by minimizing splash-related damage.

Related products

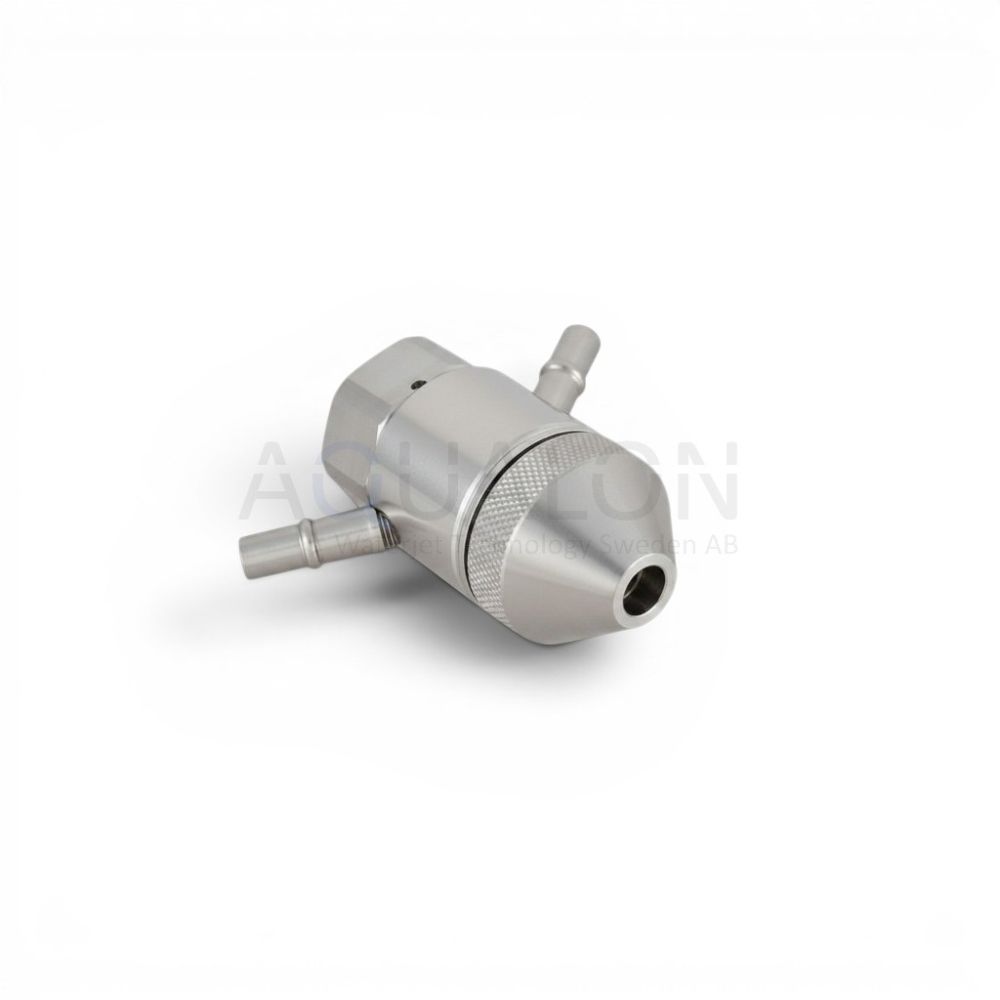

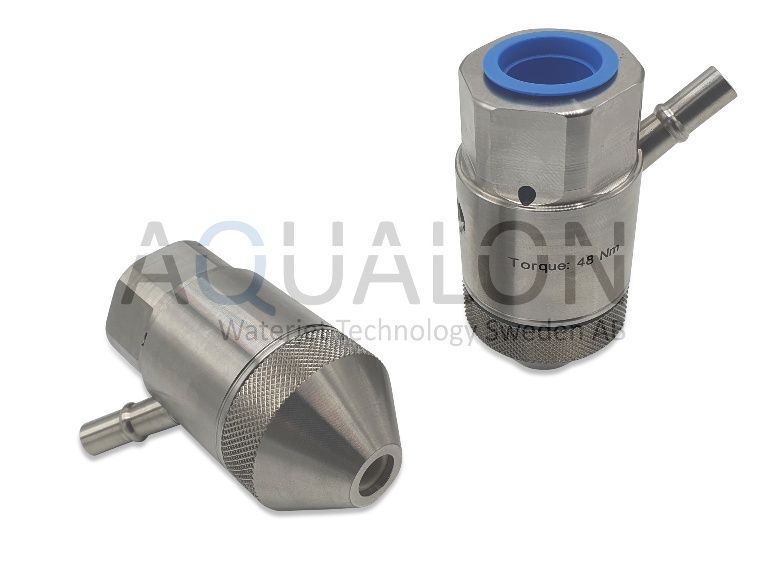

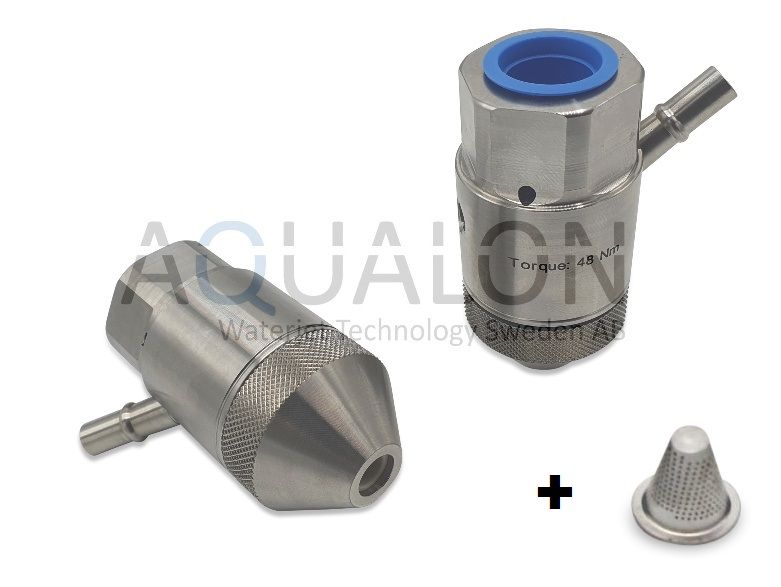

Abrasive diamond head assembly, 301329-1-09, 0,20 mm
