FLOW Cylinder Assembly

The AQUALON FLOW Cylinder Assembly is a precision-engineered hydraulic cylinder designed for high-pressure waterjet cutting applications. It provides controlled, reliable linear motion for the FLOW intensifier system, ensuring stable pressure generation and consistent cutting performance. Manufactured from high-strength, corrosion-resistant materials, the assembly is optimized for long service life, minimal maintenance, and high operational efficiency in demanding industrial environments.

Sort

Products per page

Spring Energized Rod Seal, A-11275

10105
Net Weight: 2 g

O-ring HP Seal 60K FLOW, B-8075-119

10488
Net Weight: 1 g

Brass Back-up 60K, B-1465-1

10489
Net Weight: 132 g

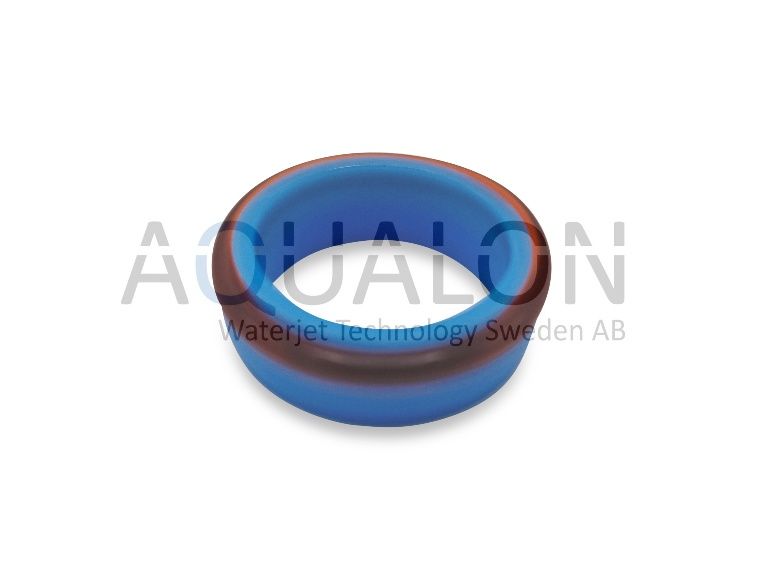

HP Seal, 004406-1

10490

Hoop ring, 60K, 004407-1

10491

HP Seal kit, 001198-1

10508
Net Weight: 336 g

HP seal kit, 302004-1-J

10513
Net Weight: 12 g

HP Cylinder 60K, 007038-3

10529
Net Weight: 4882 g

Repair kit, 60K Low Pressure, 010641-1

10530
Net Weight: 74 g

End bell bushing, B-1040-2

10534

Ceramic plunger, 010253-1

10542
Net Weight: 569 g

HP seal, 004406-1

10671
Net Weight: 3 g

FLOW Cylinder Assembly:

1. Cylinder Barrel

Precision-machined cylinder tube
Designed for high-pressure operation
Internal surface finish optimized for long seal life

2. Piston

Transfers force between the hydraulic and high-pressure sides
Equipped with wear and sealing elements

3. Piston Rod / Plunger

High-strength axial moving component
Critical for pressure generation in the intensifier system

4. Seals and Seal Kit

Dynamic and static seals
O-rings, wear rings, and backup rings
Ensure leak-free and reliable operation

5. End Caps / Cylinder Heads

Front and rear end caps
Secure internal components
Include hydraulic port connections

6. Bearing and Guide Components

Guide bushings and wear bands
Reduce friction and wear
Maintain accurate linear movement

7. Fasteners

Bolts, nuts, and retaining rings
Hold the complete assembly together
