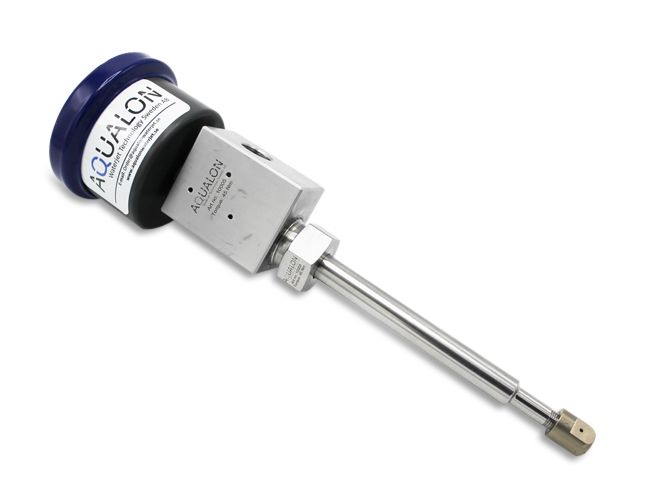

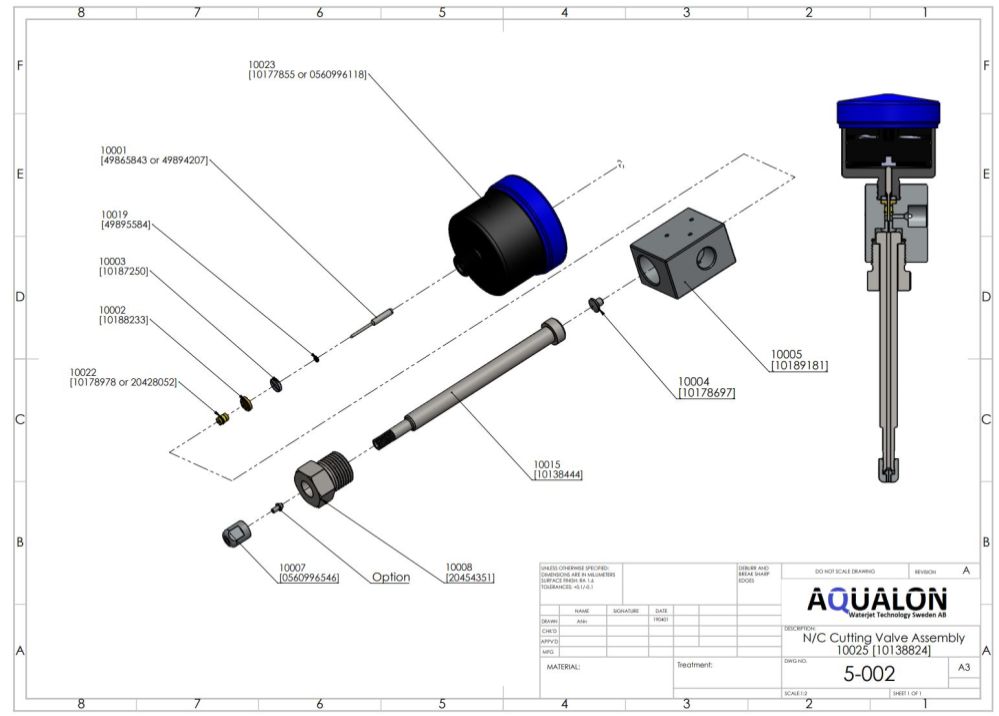

N/C Cutting valve assembly, 10178184

Stem, Pneumatic Valve, 49865843

10001
Net Weight: 6 g

Back-up ring, Pneumatic Valve, 10188233

10002
Net Weight: 3 g

Bearing Disk, Pneumatic Valve, 10187250

10003
Net Weight: 3 g

Seat, Pneumatic Valve, 10178697

10004
Net Weight: 4 g

Valve Body, Pneumatic Valve, 10189181

10005
Net Weight: 763 g

Nozzle nut, Pneumatic Valve, 49863665

10007
Net Weight: 21 g

Gland nut, Pneumatic valve, 49894249

10008
Net Weight: 164 g

Actuator cylinder, Pneumatic valve N/C, 10176543

10009
Net Weight: 225 g

Nozzle tube 8" NNC, 10138444

10015
Net Weight: 214 g

O-ring Valve Actuator, 10177806

10016
Net Weight: 3 g

Snap Ring, Valve Actuator, 10177772

10017
Net Weight: 17 g

O-ring, Valve stem, 49895584

10019
Net Weight: 1 g

Spring kit, Pneumatic Valve Actuator (6x), 05054119

10021
Net Weight: 93 g

Seal assembly 0,25", Pneumatic Valve, 10178978

10022
Net Weight: 2 g

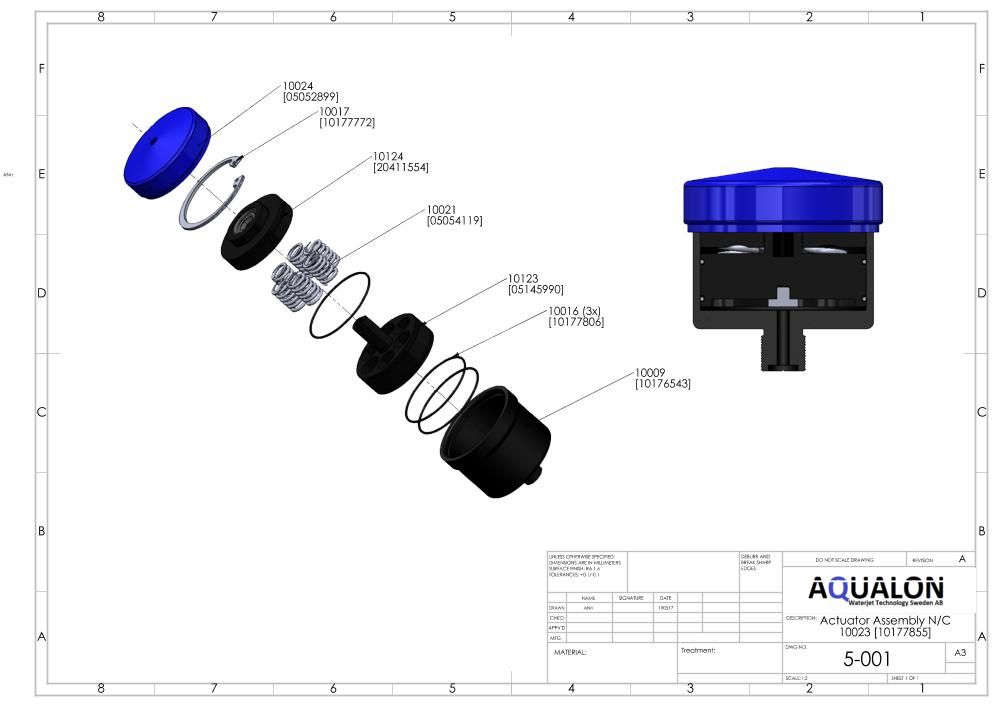

Actuator Assembly N/C Cutting valve, 10177855

10023
Net Weight: 654 g

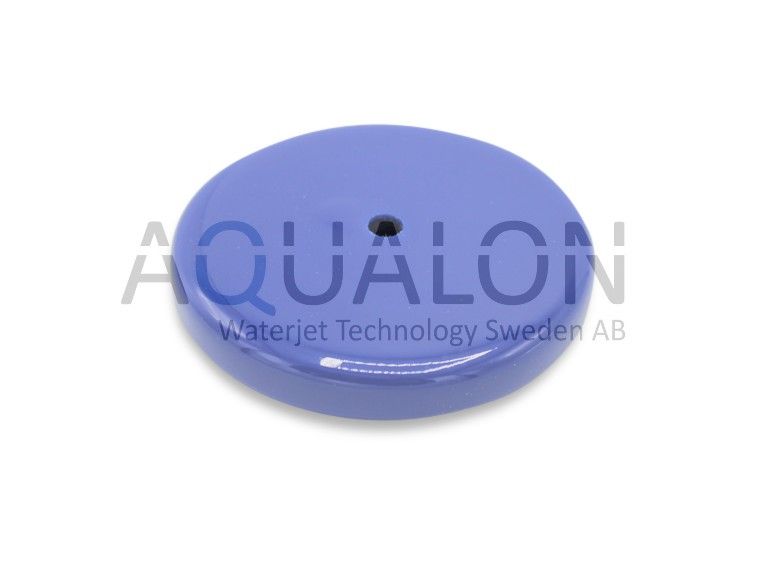

Protection cap, Pneumatic valve, 080028

10024
Net Weight: 22 g

N/C Cutting valve assembly, (6'' nozzle tube) 10178168

12417
Net Weight: 2060 g
