Focusing tube .295 x 0.040 x 3.00", 500-15-0102

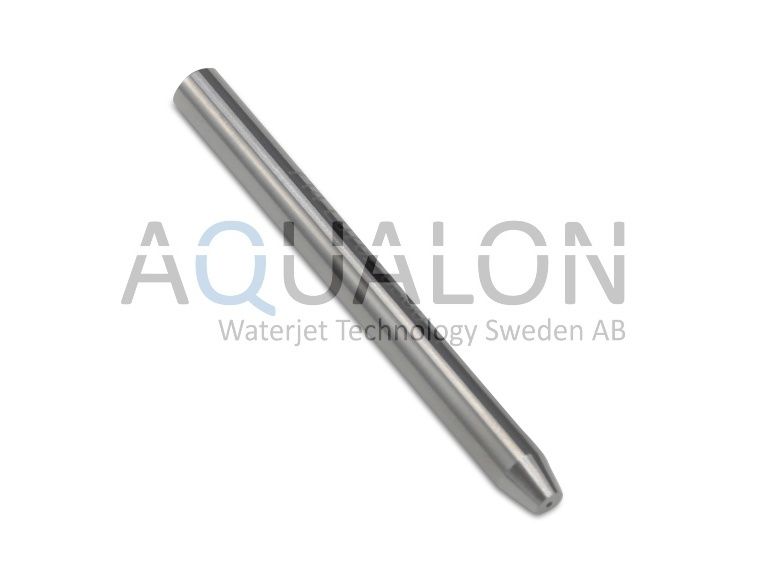

Product: Focusing Tube .295 × 0.040 × 3.00" — Part #: 500-15-0102

This is a high-pressure waterjet focusing tube used in abrasive waterjet cutting systems. It is designed to guide and concentrate the water and abrasive stream into a narrow, high-velocity jet that produces precise, efficient cuts in a wide range of materials.

Key Specifications:

• Part Number: 500-15-0102 (Techni part number)

• Dimensions: approximately 7.50 mm outer diameter × 1.01 mm inner bore × 76.4 mm length (≈ .295" × .040" × 3.00")

• Article Number: 12814

Function & Application:

• A focusing tube is a wear part in abrasive waterjet cutting heads that channels the pressurized water and abrasive through the mixing zone and into the workpiece.

• It’s engineered to maintain consistent jet alignment and stable cutting performance, helping improve cut quality and reduce wear on other components.

• Commonly used in systems where precise stream control and repeatable cutting results are critical.

Usage Notes:

• Installed between the orifice and the abrasive nozzle in the cutting head.

• Needs periodic replacement as wear occurs from high-speed abrasive flow.
