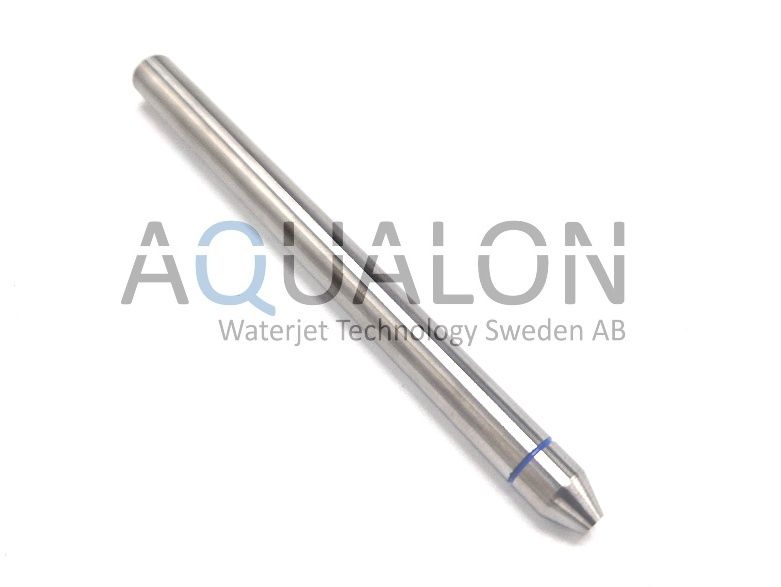

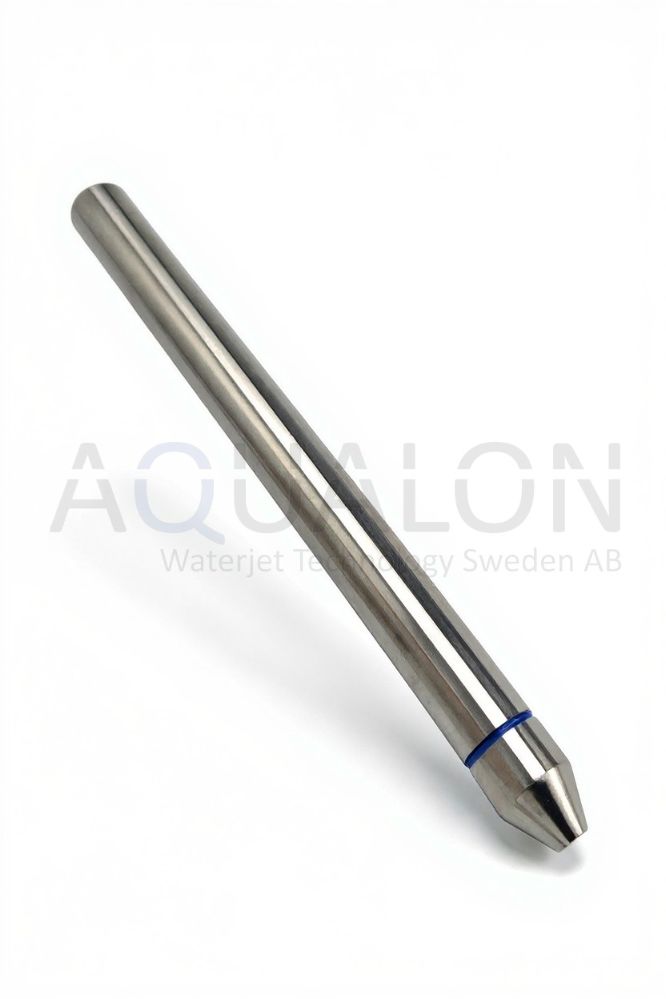

Focusing Tube – 300766‑030, 8.0 × 0.76 × 101.6 mm, R500 Eq
This is a high-precision focusing tube designed for abrasive waterjet cutting systems such as OMAX and compatible machines. The focusing tube is a critical component of the cutting head, as it concentrates the water-abrasive stream into a powerful, precise cutting jet.
Technical Specifications
-
Part Number: 11556
-
Product Code: 300766‑030
-
Outer Diameter: 8.0 mm
-
Inner Diameter (bore): 0.76 mm
-
Total Length: 101.6 mm
-
Design/Material: R500 Eq – durable, wear-resistant construction suitable for high-pressure cutting
Function
The focusing tube is a consumable component in waterjet cutting nozzles with these main functions:
-
Focuses and directs the water-abrasive mixture into a narrow, high-velocity stream for accurate cutting.
-
Maintains consistent dimensions to ensure optimal cutting performance and edge quality.
-
Wear-resistant, but requires regular replacement due to abrasion from cutting media.
Compatibility
This focusing tube is compatible with OMAX-style R500 nozzles and other waterjet systems that use standard R500 focusing tubes. It provides a cost-effective, reliable alternative to original equipment focusing tubes without compromising cutting quality.
