Pneumatic control valve, UHP, N/C 90K - Aqualon

Products / Kmt / Kmt-pnuematic-valves / Pneumatic-control-valve-uhp-nc-90k

For use with KMT Waterjet PRO I, PRO II, and PRO III systems.

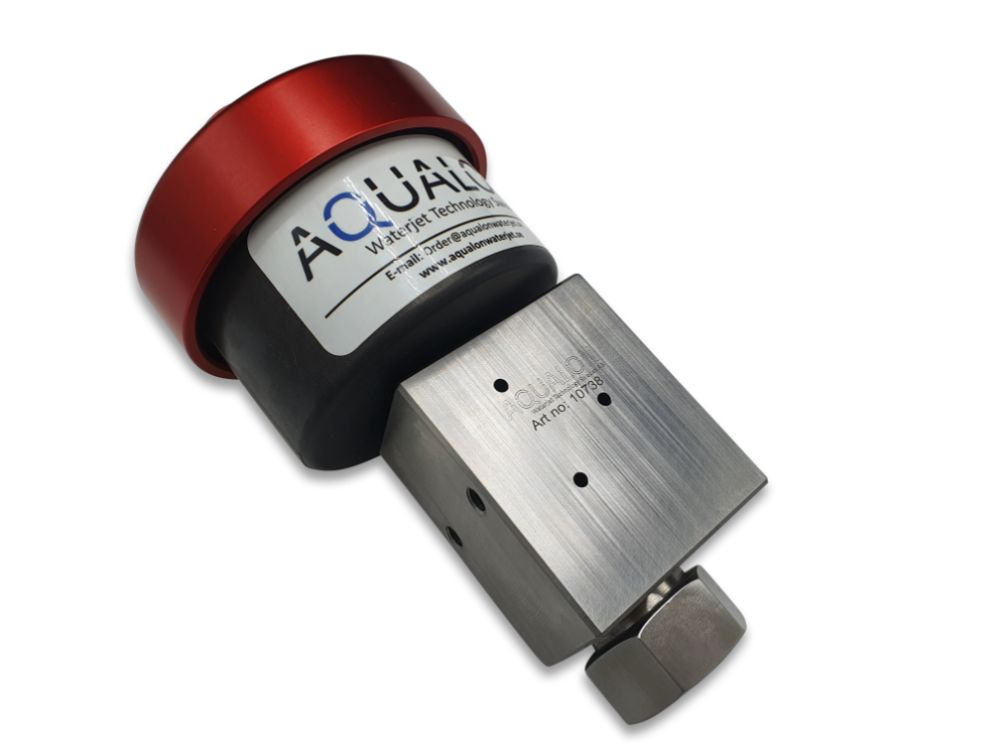

Normally closed pneumatic valve for 90k UHP systems. Repair kit number is 10715. Actuator has standard air intake with 1/8-27 NPT RH thread. HP water inlet is 1/4" UHP connection. Suggested air pressure for this actuator is 85-120 PSIG. (Nozzle Tube is sold seperately)

Show subcategories

PNEUMATIC ACTUATOR ASSEMBLY, NC, UHP

Sort

Products per page

Seat, Pneumatic Valve, 10178697

10004
Net Weight: 4 g

O-ring Valve Actuator, 10177806

10016
Net Weight: 3 g

Snap Ring, Valve Actuator, 10177772

10017
Net Weight: 17 g

O-ring, Valve stem, 49895584

10019
Net Weight: 1 g

Spring kit, Pneumatic Valve Actuator (6x), 05054119

10021
Net Weight: 93 g

Top cover, Pneumatic valve, 10176568

10124
Net Weight: 131 g

Gland Nut, Nozzle tube 3/4'' , 20454351

10577
Net Weight: 121 g

UHP stem 90K, 20475878

10712
Net Weight: 2 g

Repair Kit, Pneumatic Valve Assembly, NC, UHP, 20477521

10715
Net Weight: 24 g

Seal assembly, Pneumatic valve, 1/4", UHP, 72112069

10717
Net Weight: 2 g

Body UHP Pneumatic Valve 2-port, 20475871

10738
Net Weight: 850 g

O-RING, Pneumatic Valve, 10150233

10790
Net Weight: 1 g
