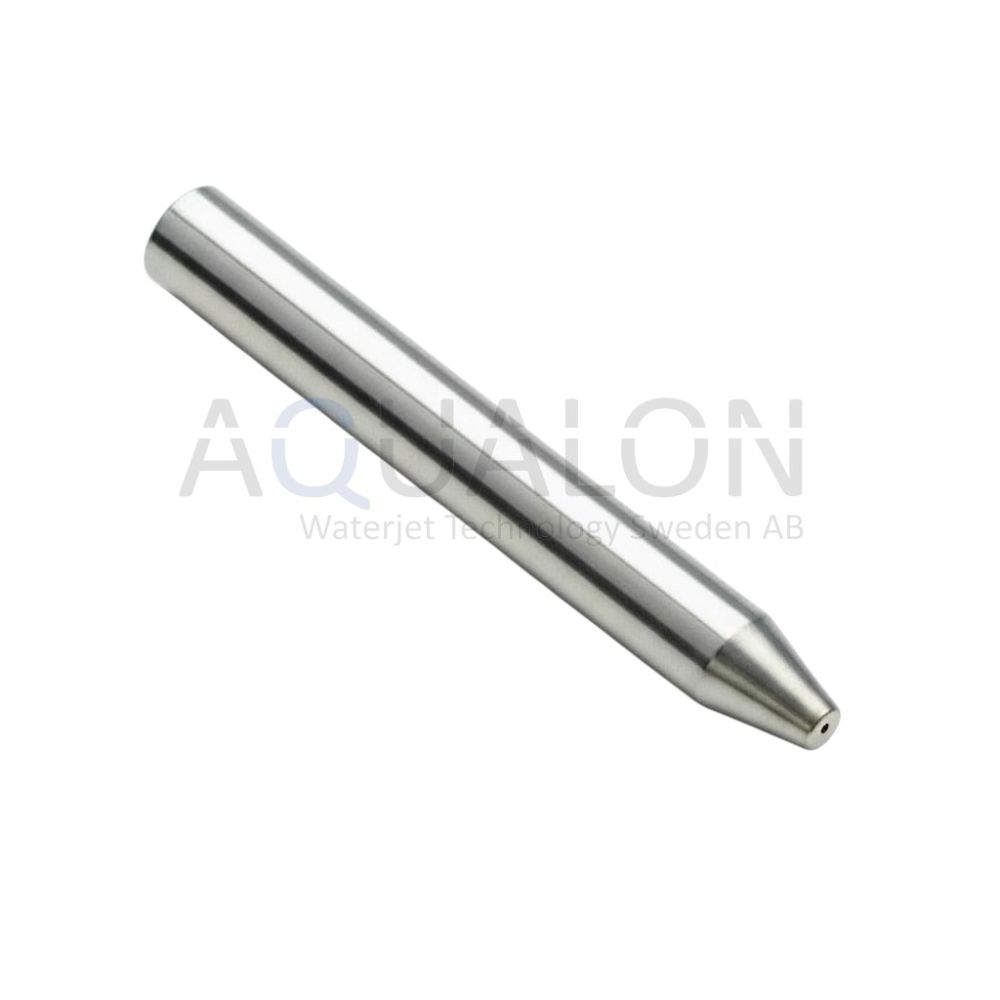

Product: Focusing Tube .295 × .030 × 3.00" — 500-15-0100
This is a precision focusing tube designed for use in abrasive waterjet cutting systems. It’s a critical wear component that channels the high-pressure water and abrasive mixture into a tight, focused stream for efficient and accurate cutting.
Key Details:
-
Techni Part Number: 500-15-0100
-
Description: Focusing tube with dimensions .295 × .030 × 3.00″ (approx. 7.50 mm OD × 0.76 mm ID × 76.2 mm length) — similar sizing indicated by equivalent part catalogs.
-
Article Number: 12813
Function & Application:
-
This tube is installed in the waterjet cutting head between the orifice and the abrasive nozzle, where it concentrates the pressurized water and abrasive flow into a narrow, high-velocity jet.
-
It helps maintain precise jet alignment and cutting accuracy, which is essential for clean, repeatable cuts across a wide variety of materials.
-
Because it’s a wear item, it should be inspected and replaced periodically to uphold cutting quality and prevent nozzle misalignment or poor performance.
